How to create V2ray Vmess proxy to tunnel the system — vpn ( Linux / Windows )

Hey folks, I hope you doing well.

in this article, we’re going to learn that :

• how to setup a vmess proxy
• how to tunnel the whole system on linux / windows with vmess
• how to use a packet forwarder for censorship bypass

#Requirements :

• - a server for vmess proxy
• - a server for forwarding requests to vmess proxy server ( bypass geo censorship/filtering )

1–1 Setup Vmess :

• install docker

curl -fsSL https://get.docker.com -o get-docker.sh ; sh get-docker.sh

• create a docker-compose.yaml file with the following content

version: '3'
services:
  v2ray:
    image: v2fly/v2fly-core
    restart: always
    network_mode: host
    environment:
      - V2RAY_VMESS_AEAD_FORCED=false
    volumes:
        - ./config.json:/etc/v2ray/config.json:ro

• create the config.json file and configure it as you wish

( link to the vmess configuration )

remember to replace *** in “id” filed with a valid uuid that you can generate it from here https://uuidonline.com/

{
  "log": {
    "loglevel": "info"
  },
  "inbounds": [
    {
      "port": 80,
      "protocol": "vmess",
      "allocate": {
        "strategy": "always"
      },
      "settings": {
        "clients": [
          {
            "id": "****",
            "level": 1,
            "alterId": 0,
            "email": "asd@bsd.com"
          }
        ],
        "disableInsecureEncryption": true
      },
      "streamSettings": {
        "network": "ws",
        "wsSettings": {
          "connectionReuse": true,
          "path": "/api"
        },
        "security": "none",
        "tcpSettings": {
          "header": {
            "type": "http",
            "response": {
              "version": "1.1",
              "status": "200",
              "reason": "OK",
              "headers": {
                "Content-Type": [
                  "application/octet-stream",
                  "application/x-msdownload",
                  "text/html",
                  "application/x-shockwave-flash"
                ],
                "Transfer-Encoding": ["chunked"],
                "Connection": ["keep-alive"],
                "Pragma": "no-cache"
              }
            }
          }
        }
      }
    }
  ],
  "outbounds": [
    {
      "protocol": "freedom",
      "settings": {}
    }
  ]
}

till now you can officially connect to your vmess server by a client, you can use the following structure and change it based on your ip address and config file :

{
    "add": "IP_ADDRESS",
    "aid": "0",
    "host": "",
    "id": "UUID",
    "net": "ws",
    "path": "/api",
    "port": "80",
    "ps": "Vmessproxy",
    "scy": "auto",
    "sni": "",
    "tls": "",
    "type": "",
    "v": "2"
}

after all, you need to convert it to base64 and add “vmess://” to the beginning part of the string

vmess://ewogICAgImFkZCI6ICJJUF9BRERSRVNTIiwKICAgICJhaWQiOiAiMCIsCiAgICAiaG9zdCI6ICIiLAogICAgImlkIjogIlVVSUQiLAogICAgIm5ldCI6ICJ3cyIsCiAgICAicGF0aCI6ICIvYXBpIiwKICAgICJwb3J0IjogIjgwIiwKICAgICJwcyI6ICJWbWVzc3Byb3h5IiwKICAgICJzY3kiOiAiYXV0byIsCiAgICAic25pIjogIiIsCiAgICAidGxzIjogIiIsCiAgICAidHlwZSI6ICIiLAogICAgInYiOiAiMiIKfQ==

1–2 Connect to vmess proxy ( system tunnel )

now it’s time to tunnel our system to a vmess proxy, to do this we’re going to use V2rayA script for Linux, and here are the installation steps :

curl -Ls https://mirrors.v2raya.org/go.sh | sudo bash
sudo systemctl disable v2ray --now
wget -qO - https://apt.v2raya.org/key/public-key.asc | sudo tee /etc/apt/trusted.gpg.d/v2raya.asc
echo "deb https://apt.v2raya.org/ v2raya main" | sudo tee /etc/apt/sources.list.d/v2raya.list
sudo apt update
sudo apt install v2raya

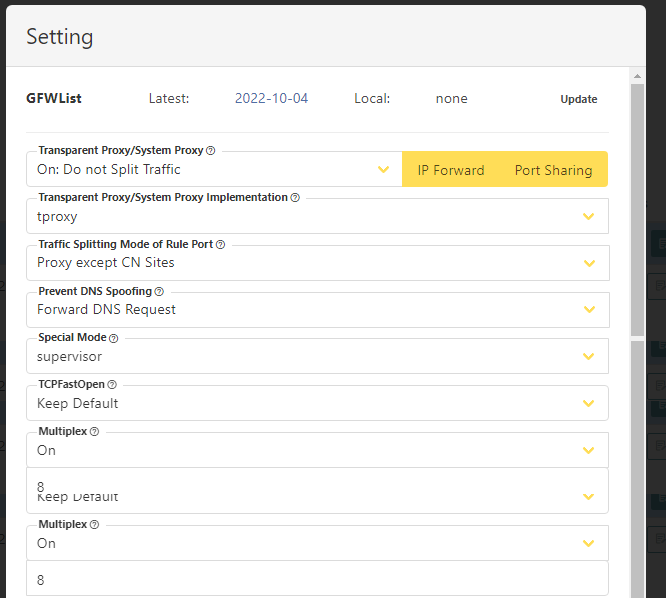

after installation run the interface and import your vmess proxy, then set the following settings :

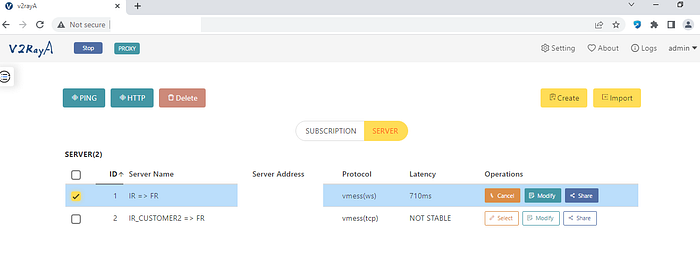

you can start the system tunnel proxy now by selecting and pressing the start button in the interface :

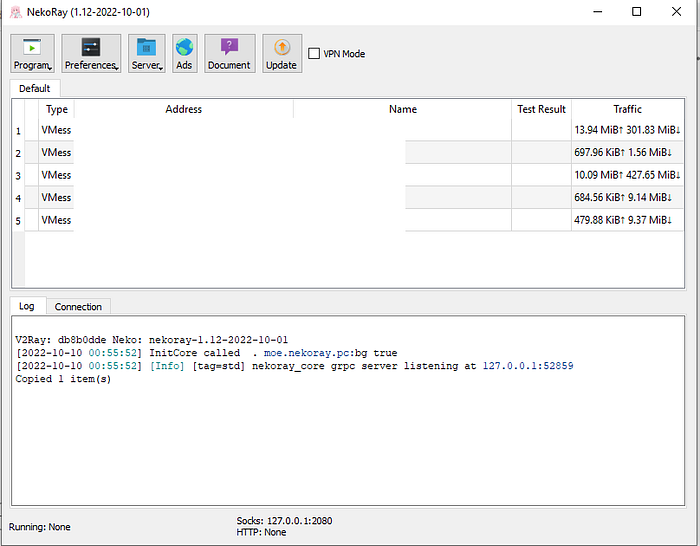

on windows you can use Nekoray program :

1–3 Bypass censorship/filtering

in order to bypass the filtering mechanism, you can use a middle-man server to forward the packets to the vmess server, we use glider script for doing such, although you can use Iptables as well ~!~

here is the syntax :

keep in mind that you can use socks,forward and … lots of other ways to forward packets to your vmess server ~!~

glider -listen tcp://:80 -forward ssh://root:password@middle_man_server_IP:22,tcp://VmessServerIP:80 -verbose

If you have further questions/issues you can contact me on Telegram
